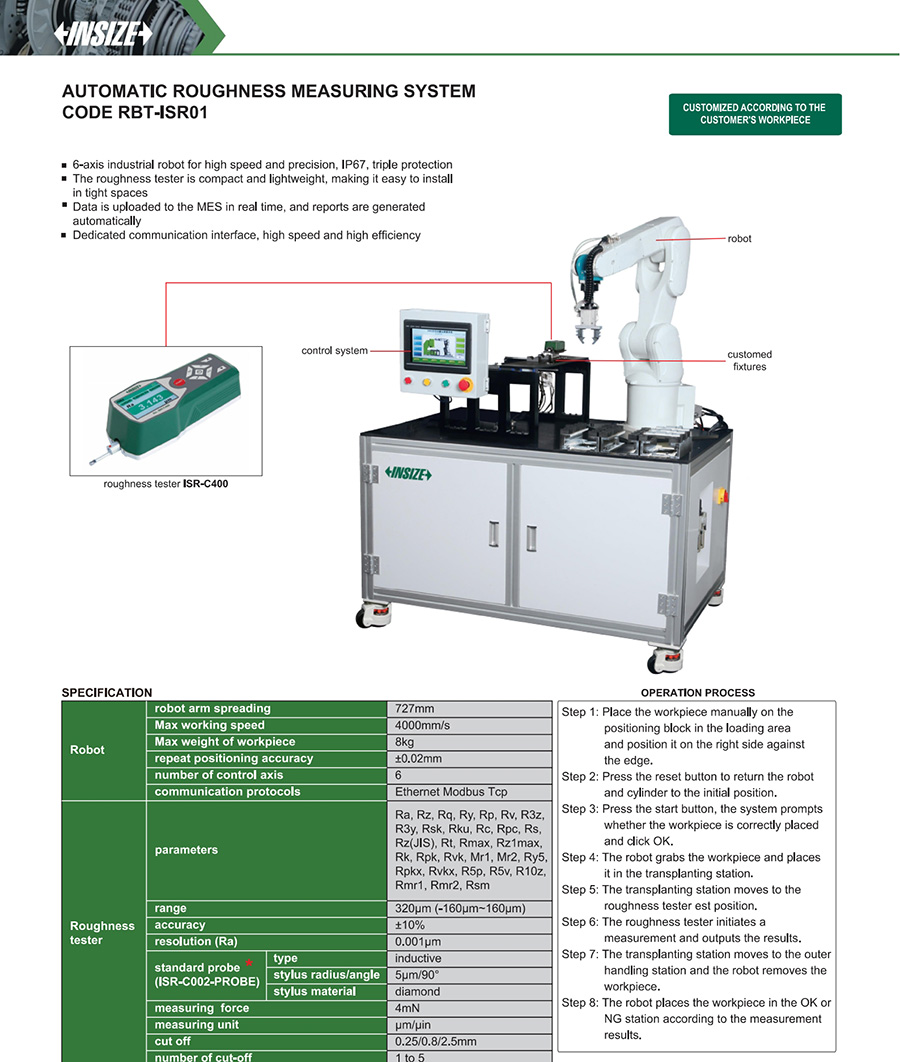

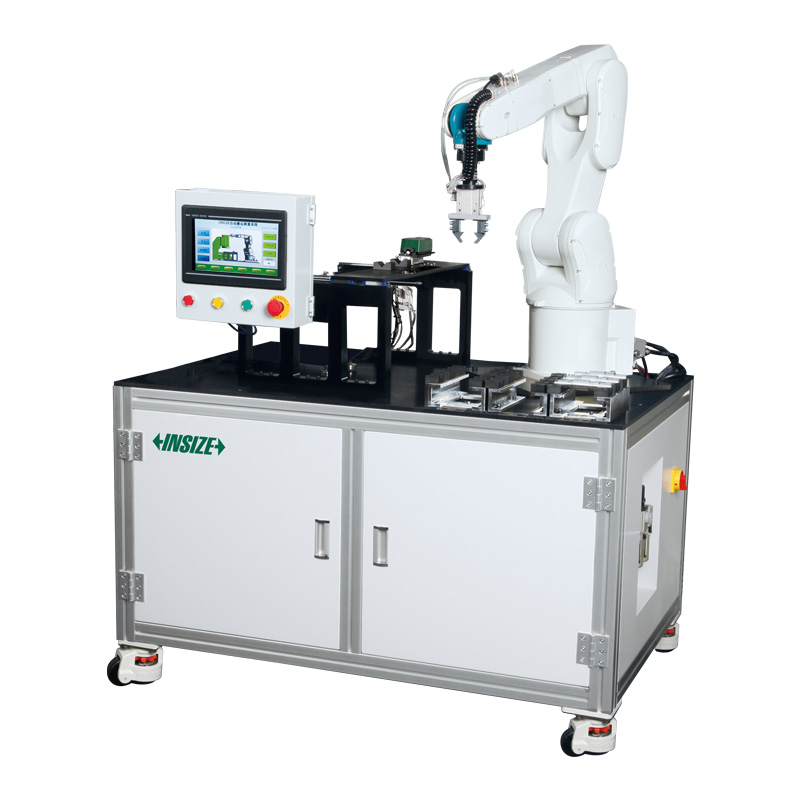

Automatic Roughness Measuring System
Code: RBT-ISR01
6-axis industrial robot for high speed and precision, IP67, triple protection
The roughness tester is compact and lightweight, making it easy to install in tight spaces
Data is uploaded to the MES in real time, and reports are generated automatically
Dedicated communication interface, high speed and high efficiency
| Code | Range | Measuring force | Stylus radius/angle | Data output |
|---|---|---|---|---|
| RBT-ISR01 | 320μm (-160μm~160μm) | 4mN | 5µm/90° | bluetooth, USB, RS232 |
View the complete
product specifications
