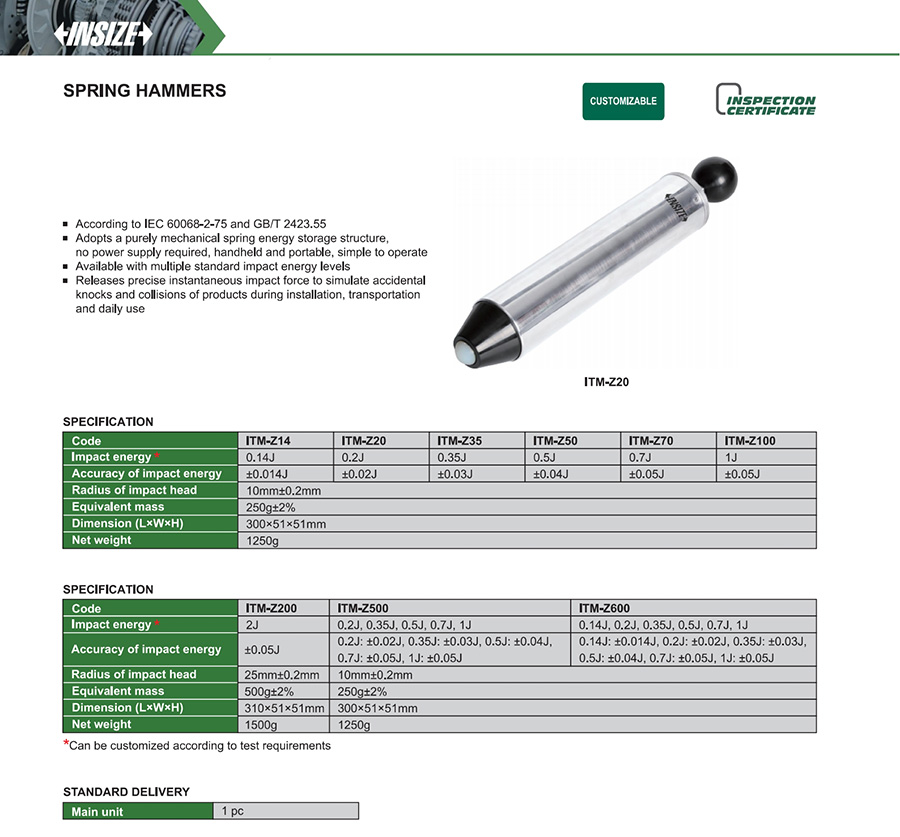

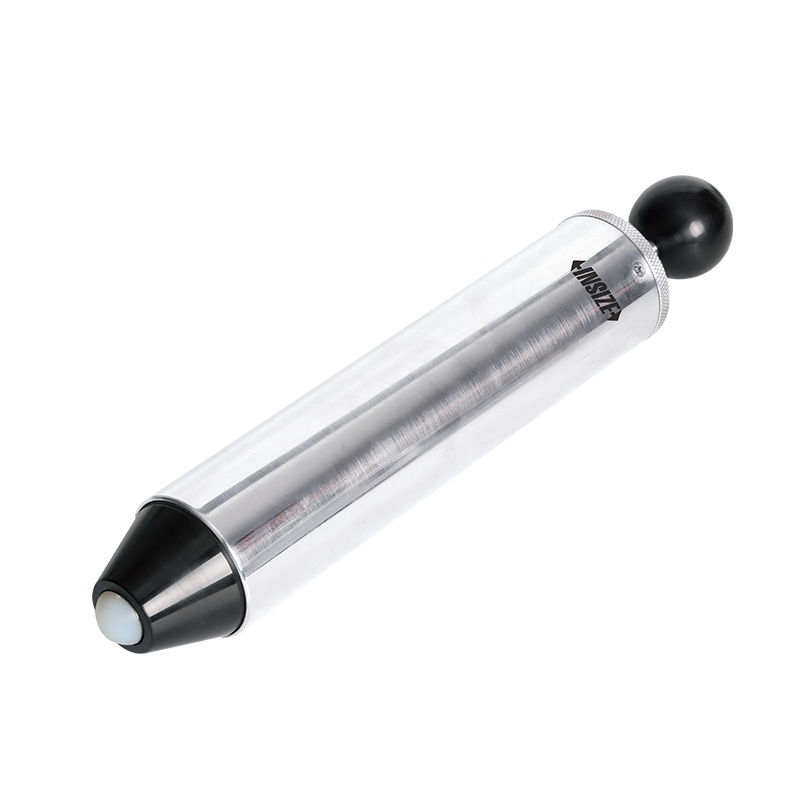

Spring Hammers
Code: ITM-Z Series
According to IEC 60068-2-75 and GB/T 2423.55
Adopts a purely mechanical spring energy storage structure, no power supply required, handheld and portable, simple to operate
Available with multiple standard impact energy levels
Releases precise instantaneous impact force to simulate accidental knocks and collisions of products during installation, transportation and daily use
| Code | Accuracy | Impact energy |
|---|---|---|
| ITM-Z14 | ±0.014J | 0.14J |
| ITM-Z20 | ±0.02J | 0.2J |
| ITM-Z35 | ±0.03J | 0.35J |
| ITM-Z50 | ±0.04J | 0.5J |
| ITM-Z70 | ±0.05J | 0.7J |
| ITM-Z100 | ±0.05J | 1J |
| ITM-Z200 | ±0.05J | 2J |
| ITM-Z500 | 0.2J: ±0.02J, 0.35J: ±0.03J, 0.5J: ±0.04J, 0.7J: ±0.05J, 1J: ±0.05J | 0.2J, 0.35J, 0.5J, 0.7J, 1J |
| ITM-Z600 | 0.14J: ±0.014J, 0.2J: ±0.02J, 0.35J: ±0.03J, 0.5J: ±0.04J, 0.7J: ±0.05J, 1J: ±0.05J | 0.14J, 0.2J, 0.35J, 0.5J, 0.7J, 1J |
