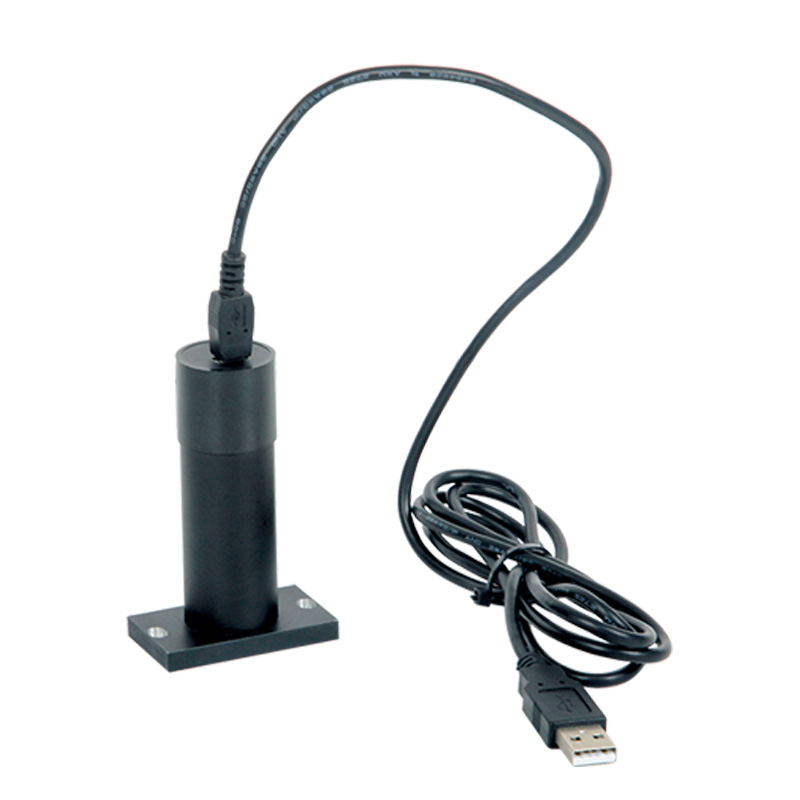

Vickers Hardness Measuring Systems
Code: HDT-CM Series
Connected to computer USB port
Measurement results can be automatically generated including average, maximum and minimum values, standard deviation, Cp, Cpk, etc.
Upper and lower limits can be set, and values exceeding the upper and lower limits are automatically marked
Measurement results can be converted to HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, etc.
Can be calibrated with standard hardness blocks
Measurement result can be sent to Word or Excel
| Code | Accuracy | Resolution | Measurement method of indentation |
|---|---|---|---|
| HDT-CM1-SW | ±3% | hardness measurement: 0.1HV | manual |
| HDT-CM1-AW | ±3% | hardness measurement: 0.1HV | automatic |
| HDT-CM2-SW | ±3% | hardness measurement: 0.1HV | manual |
| HDT-CM2-AW | ±3% | hardness measurement: 0.1HV | automatic |
| HDT-CM-SW | ±3% | hardness measurement: 0.1HV | manual |
| HDT-CM-AW | ±3% | hardness measurement: 0.1HV | automatic |
