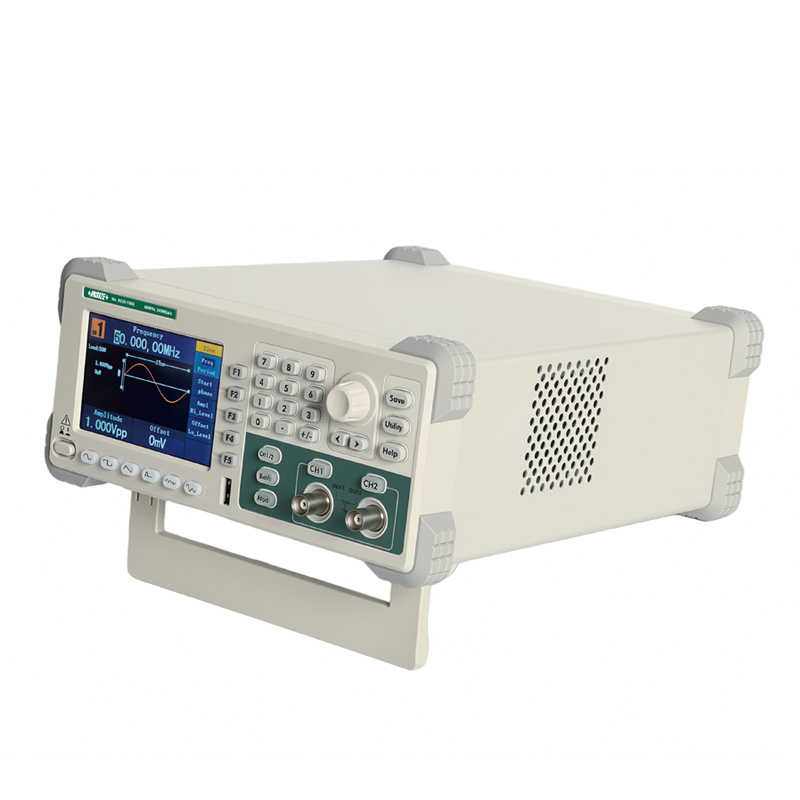

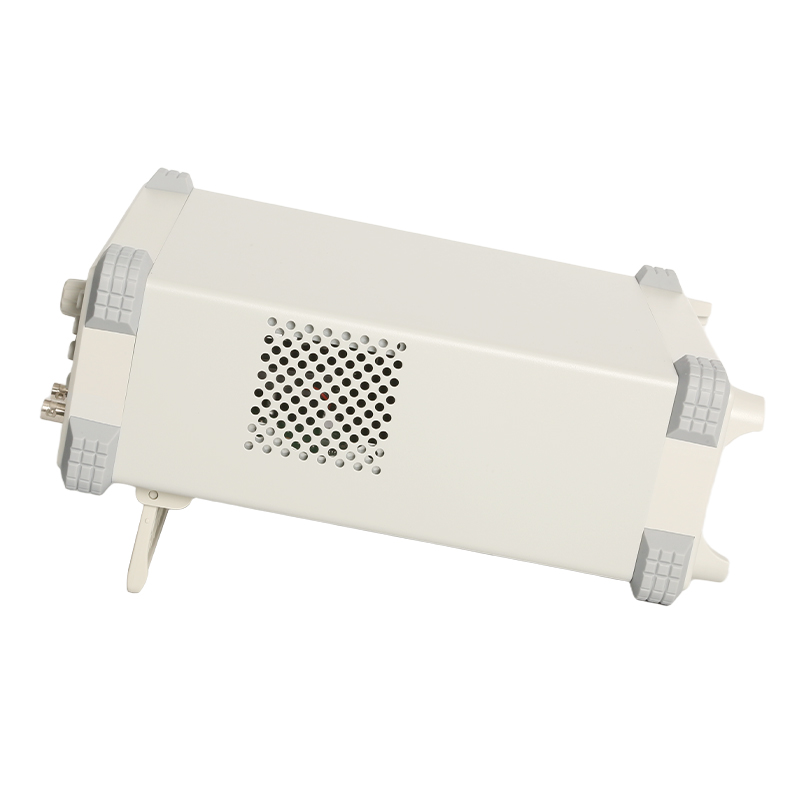

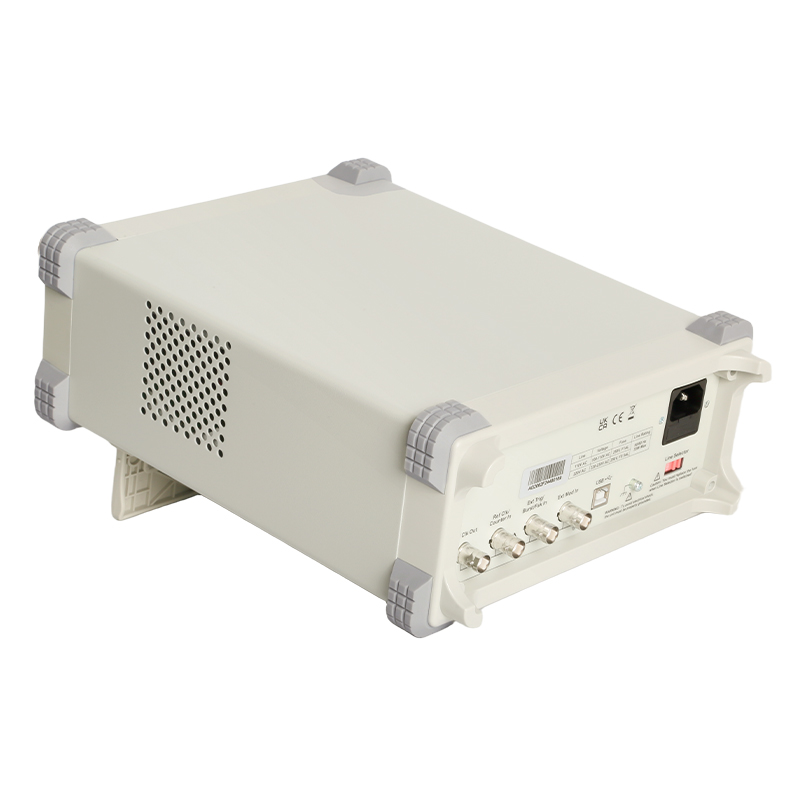

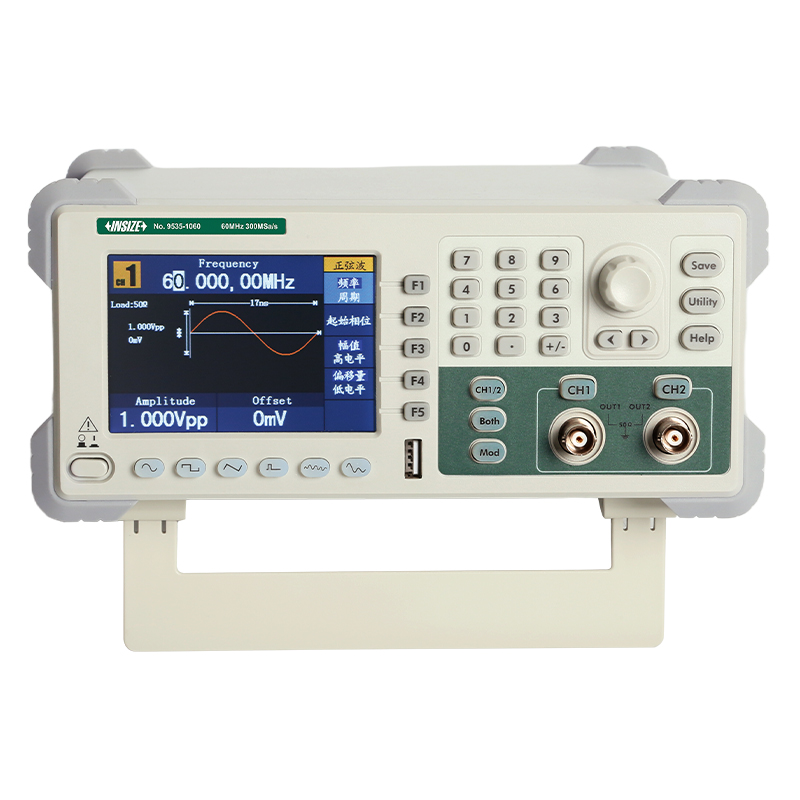

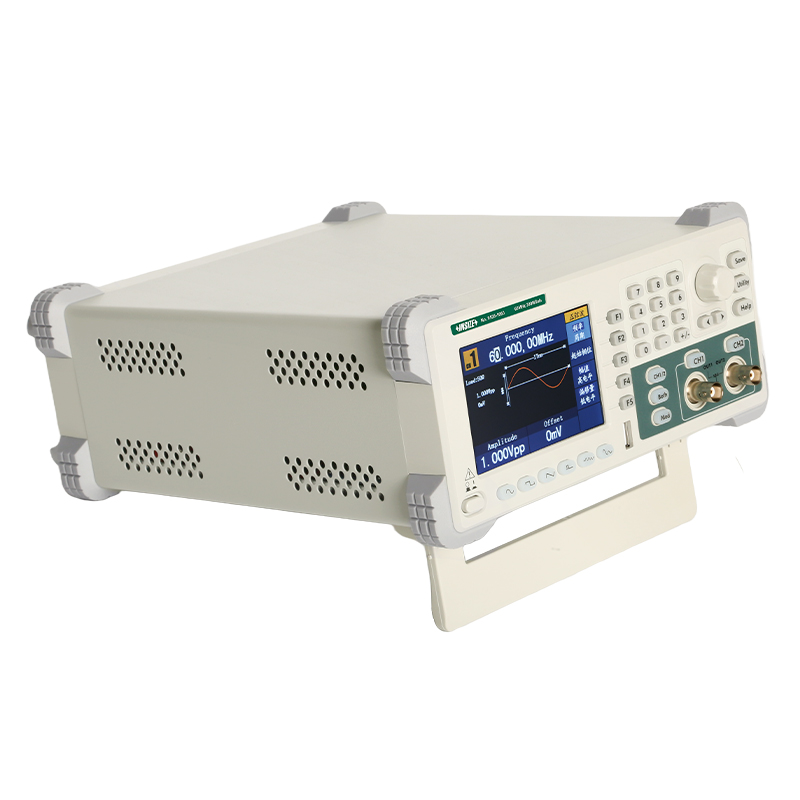

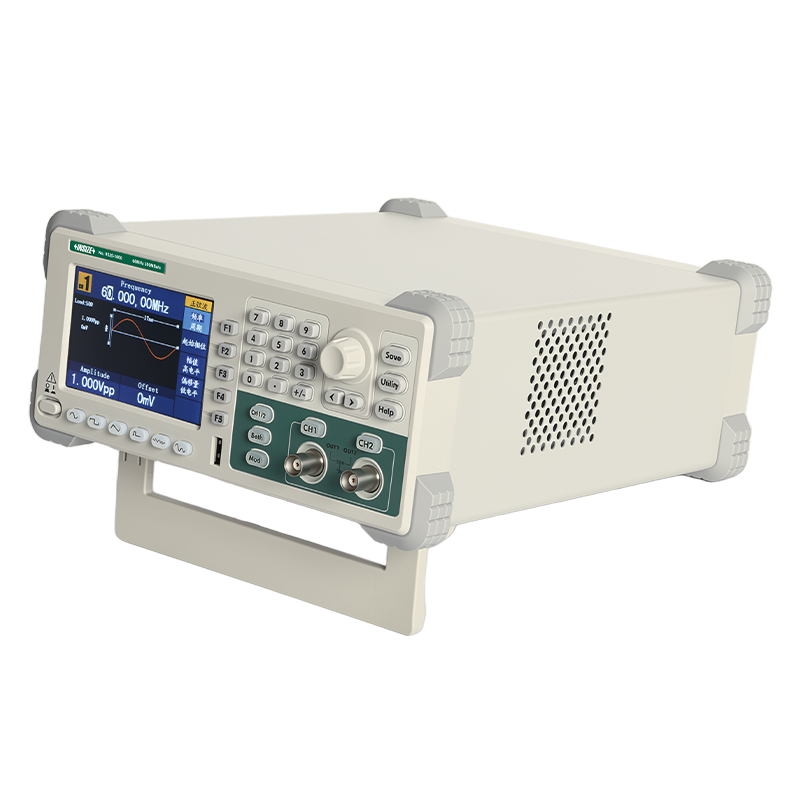

Arbitrary Waveform Generators
Code: 9535
Maximum output frequency: 60MHz
Maximum sampling rate: 300MSa/s
14 bits vertical resolution
Output waveform: 5 standard waveforms, 45 built-in arbitrary waveforms
Modulation: AM, FM, PM, FSK, PWM, ASK, PSK, sweep, burst
| Code | Channel number | Sampling rate | Arbitrary waveform length | Maximum output frequency |
|---|---|---|---|---|
| 9535-1010 | 2 | 125MSa/s | 2~8K | 10MHz |
| 9535-1025 | 2 | 125MSa/s | 2~10K | 25MHz |
| 9535-1050 | 2 | 300MSa/s | 2~10K | 50MHz |
| 9535-1060 | 2 | 300MSa/s | 2~10K | 60MHz |

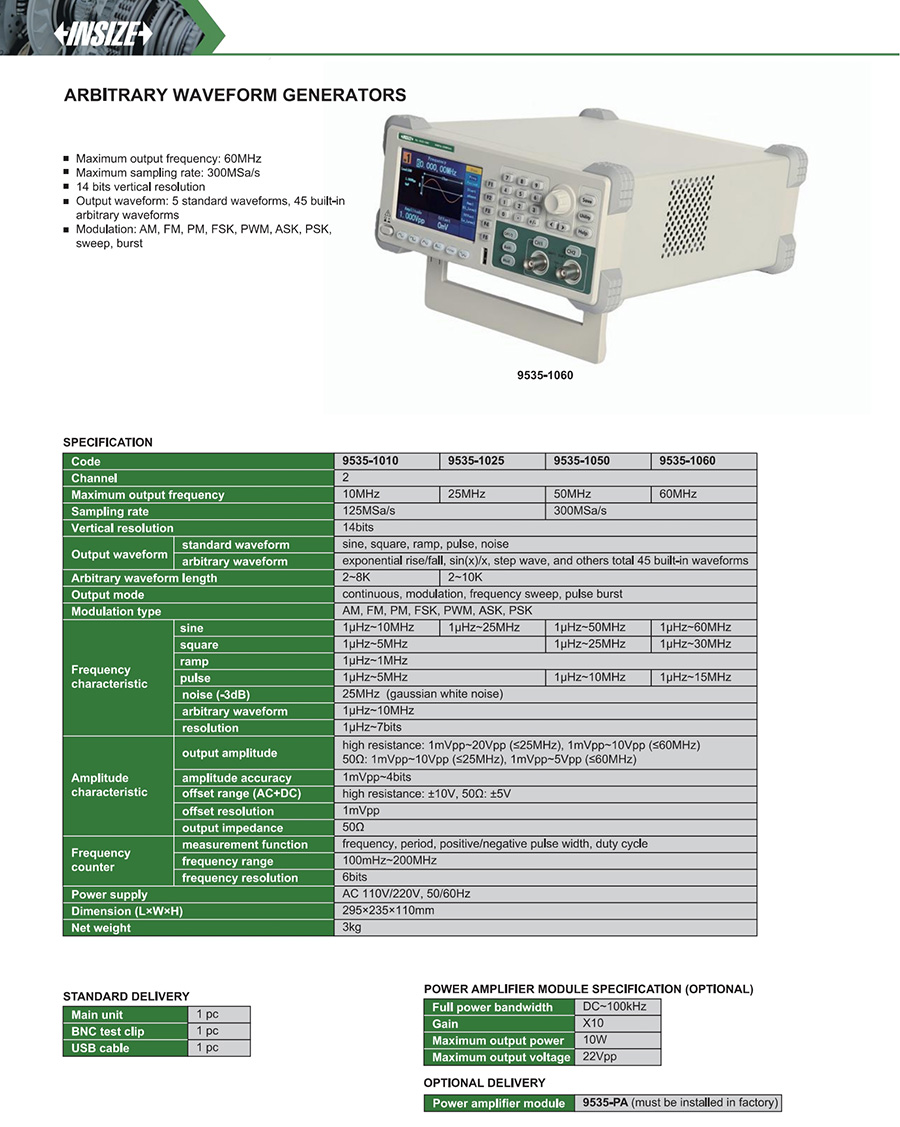

View the complete
product specifications
