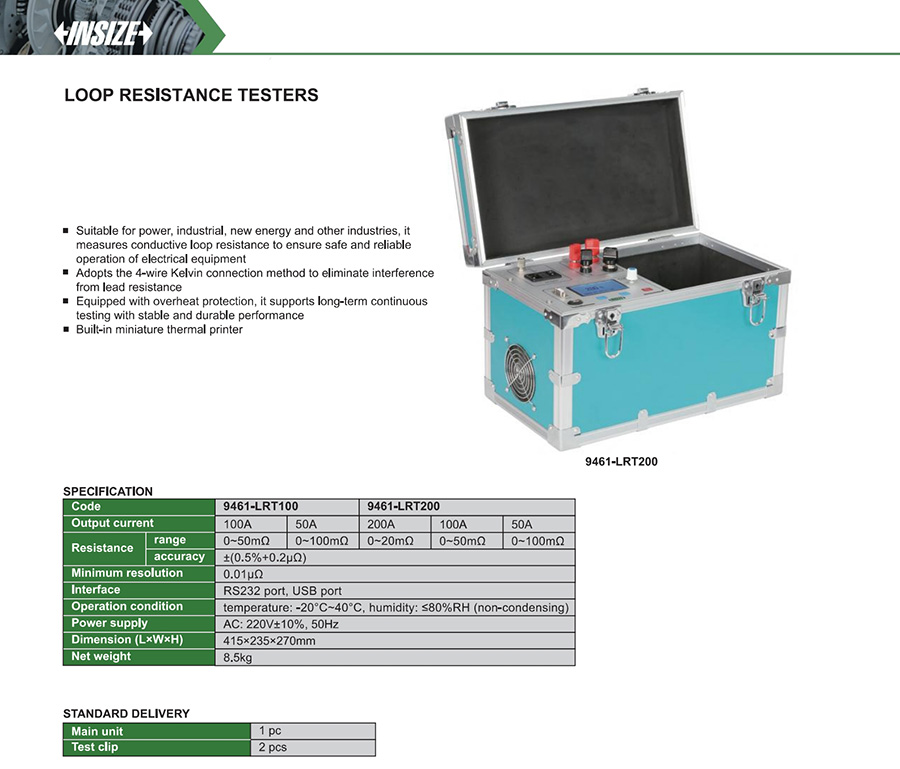

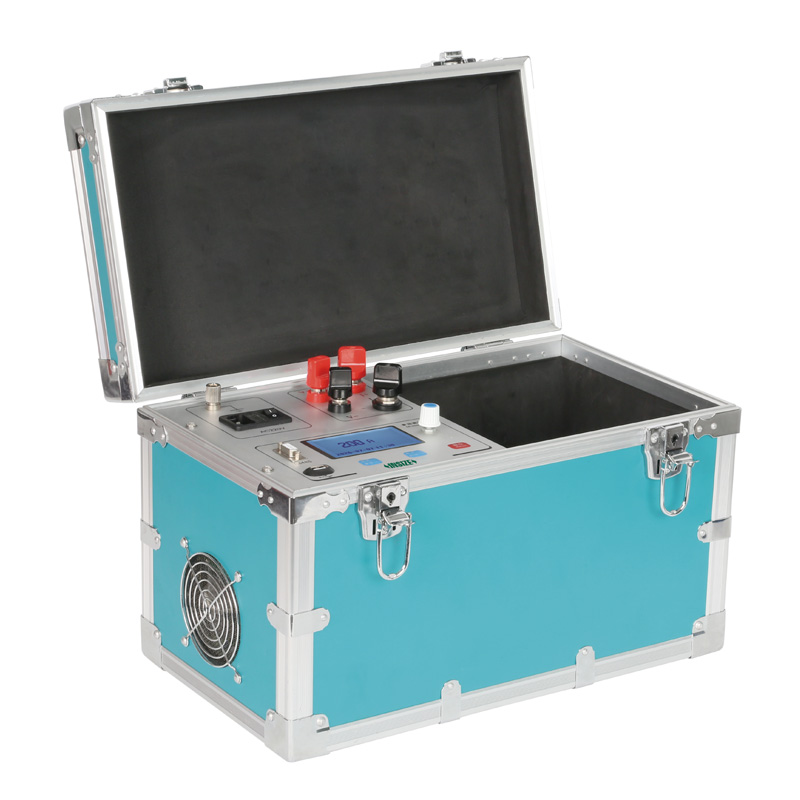

Loop Resistance Testers
Code: 9461-LRT100/LRT200
Suitable for power, industrial, new energy and other industries, it measures conductive loop resistance to ensure safe and reliable operation of electrical equipment
Adopts the 4-wire Kelvin connection method to eliminate interference from lead resistance
Equipped with overheat protection, it supports long-term continuous testing with stable and durable performance
Built-in miniature thermal printer
| Code | Accuracy | Resistance range | Output current |
|---|---|---|---|
| 9461-LRT100 | ±(0.5%+0.2µΩ) | 0~50mΩ/0~100mΩ | 100A/50A |
| 9461-LRT200 | ±(0.5%+0.2µΩ) | 0~20mΩ/0~50mΩ/0~100mΩ | 200A/100A/50A |
