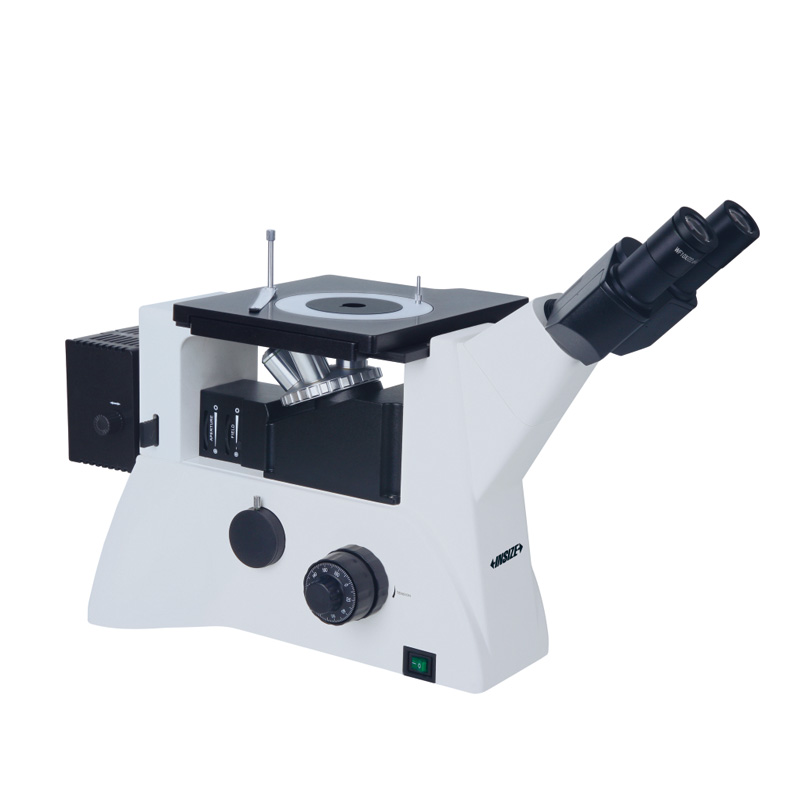

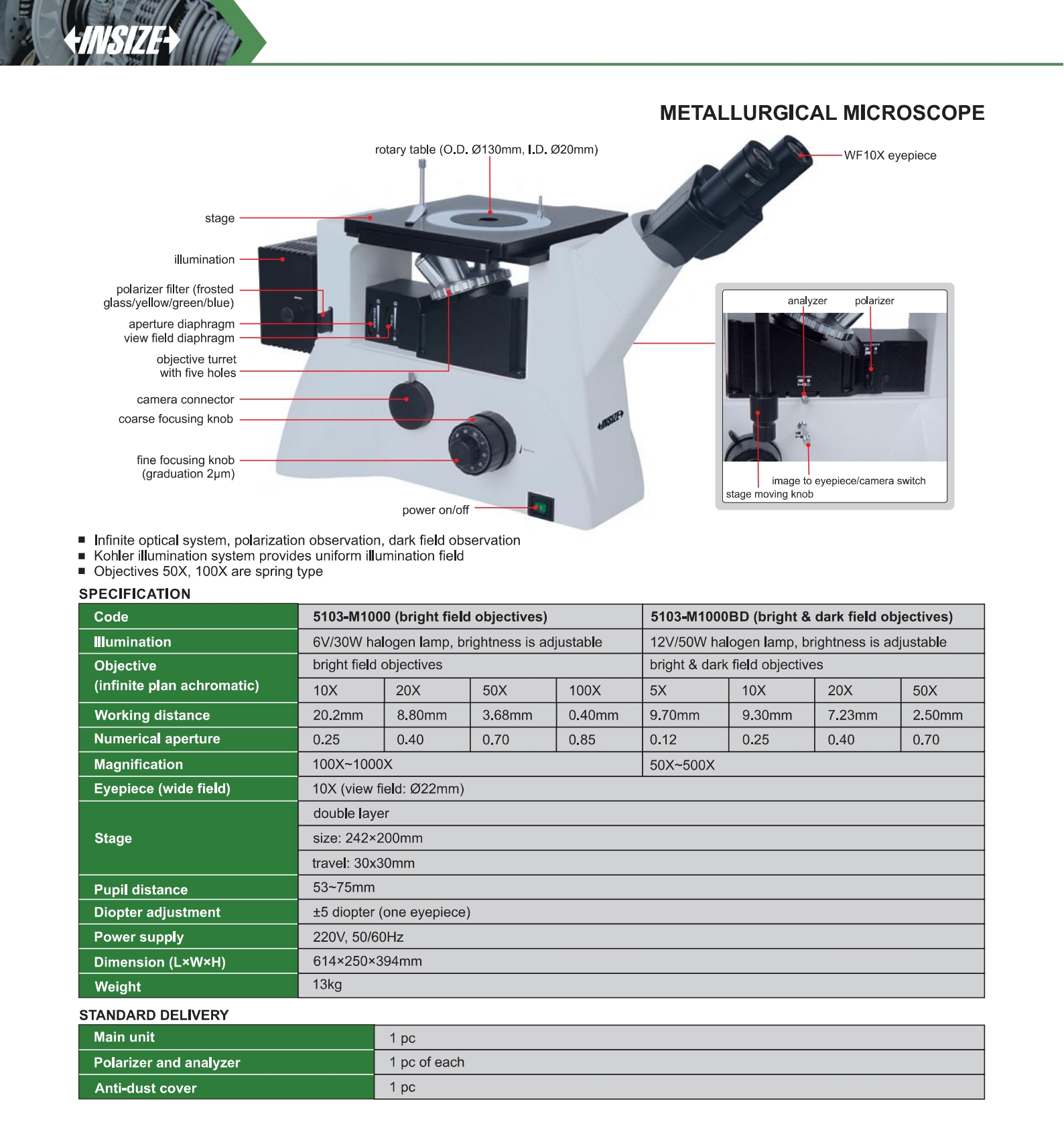

Metallurgical Microscopes
Code: 5103-M1000/M1000BD
Infinite optical system, polarization observation, dark field observation
Kohler illumination system provides uniform illumination field
Objectives 50X, 100X are spring type
| Code | Stage size | Magnification | Eyepiece | Objective |
|---|---|---|---|---|
| 5103-M1000 | size: 242x200mm， travel: 30x30mm | 100X~1000X | 10X | bright field |
| 5103-M1000BD | size: 242x200mm， travel: 30x30mm | 50X~500X | 10X | bright & dark field |
