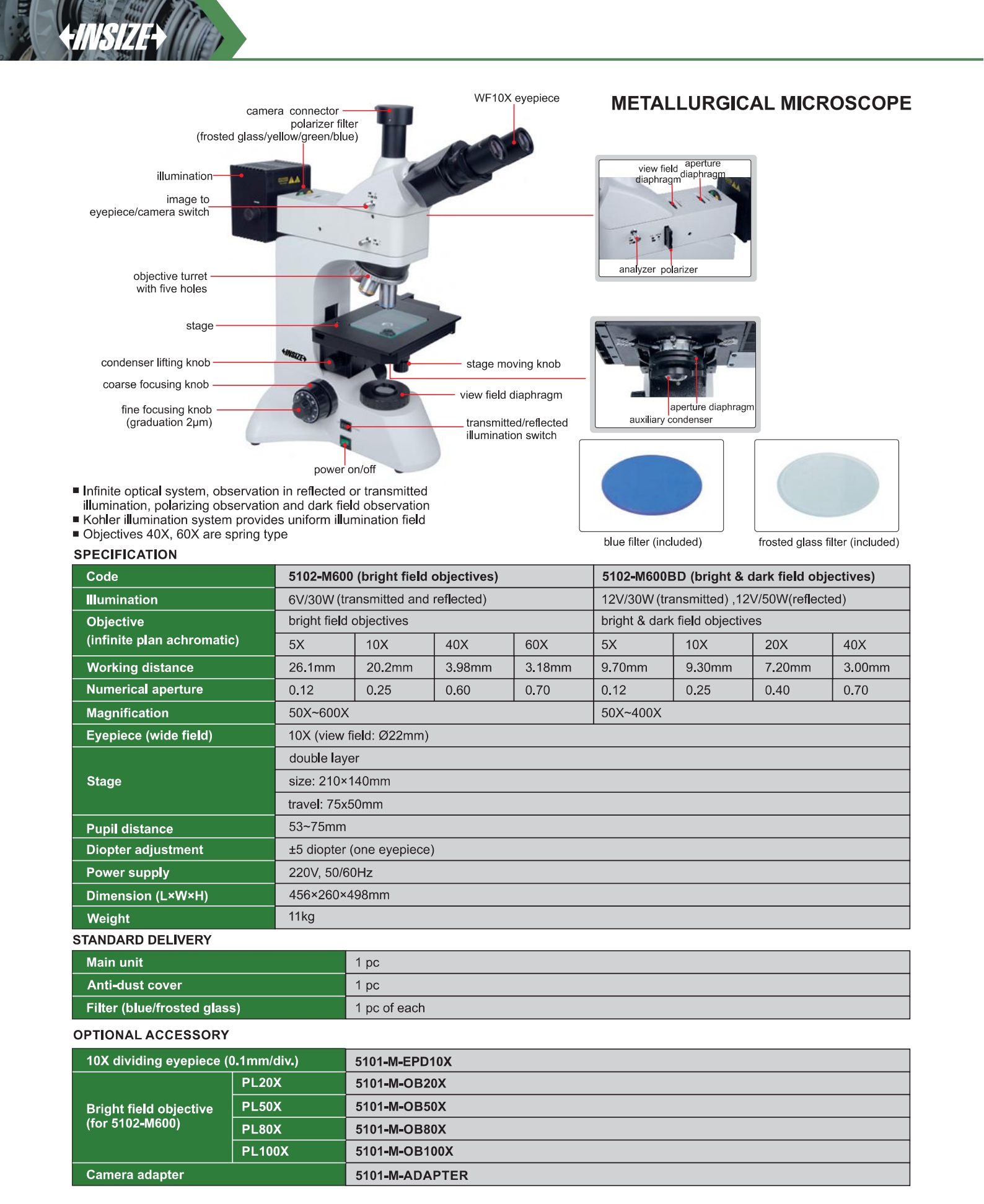

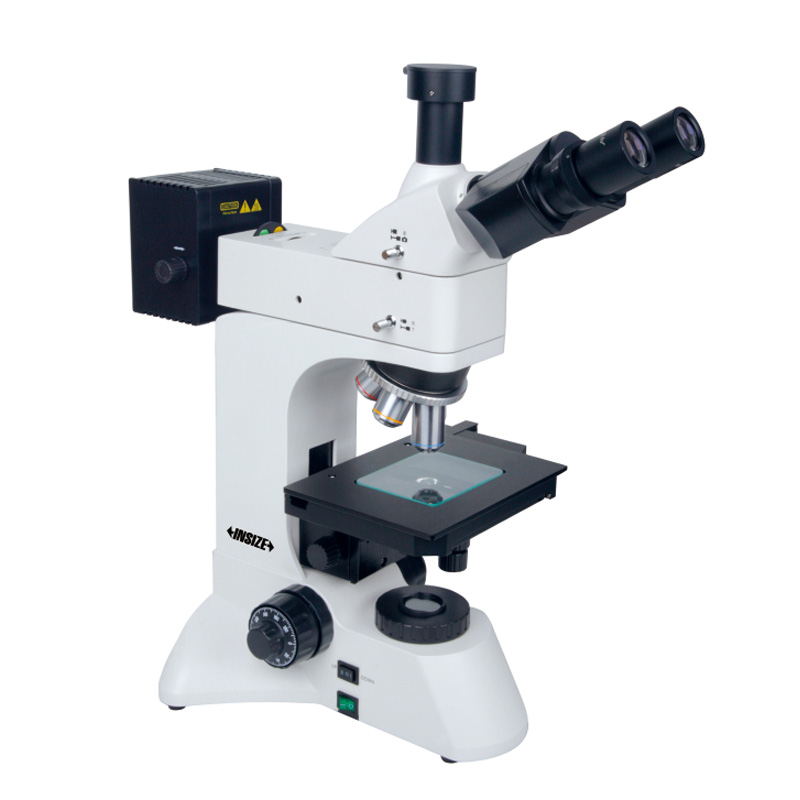

Metallurgical Microscopes (Basic Type)
Code: 5102-M600/M600BD
Infinite optical system, observation in reflected or transmitted illumination, polarizing observation and dark field observation
Kohler illumination system provides uniform illumination field
Objectives 40X, 60X are spring type
| Code | Stage size | Magnification | Eyepiece | Objective |
|---|---|---|---|---|
| 5102-M600 | size: 210x140mm， travel: 75x50mm | 50X~600X | 10X | bright field |
| 5102-M600BD | size: 210x140mm， travel: 75x50mm | 50X~400X | 10X | bright & dark field |
