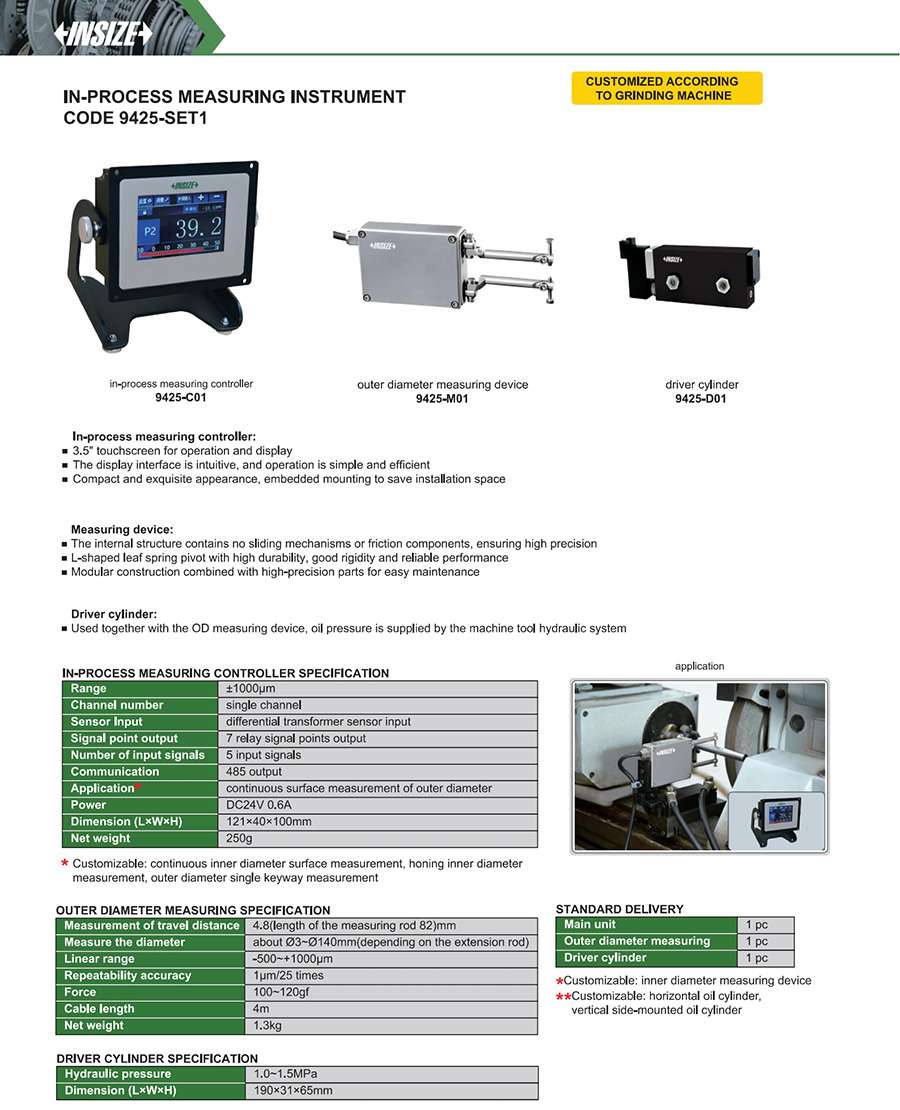

In-Process Measuring Instrument
Code: 9425-SET1

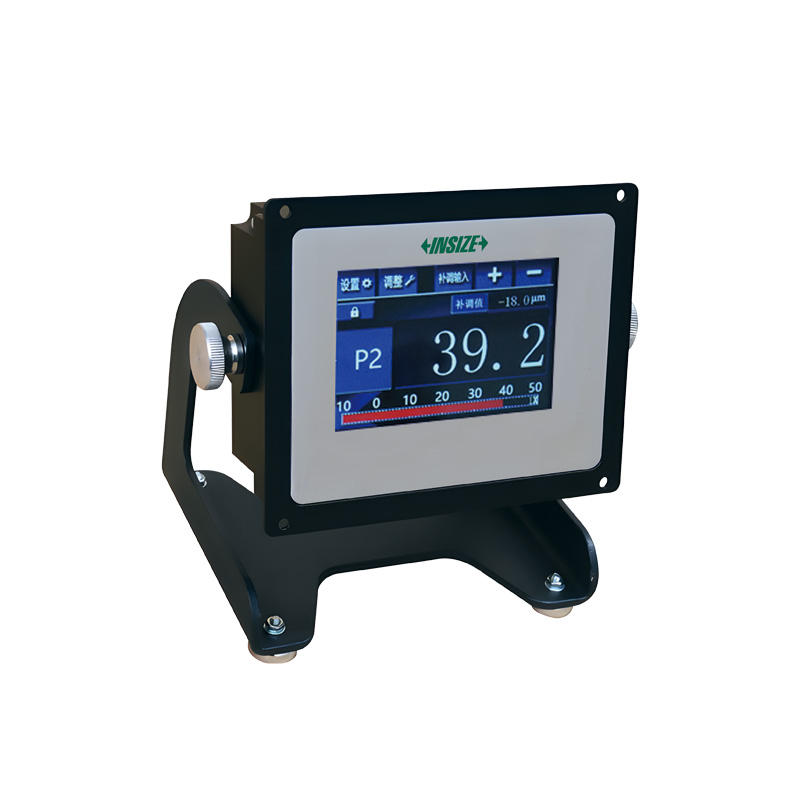

In-process measuring controller: 3.5" touchscreen for operation and display; The display interface is intuitive, and operation is simple and efficient; Compact and exquisite appearance, embedded mounting to save installation space

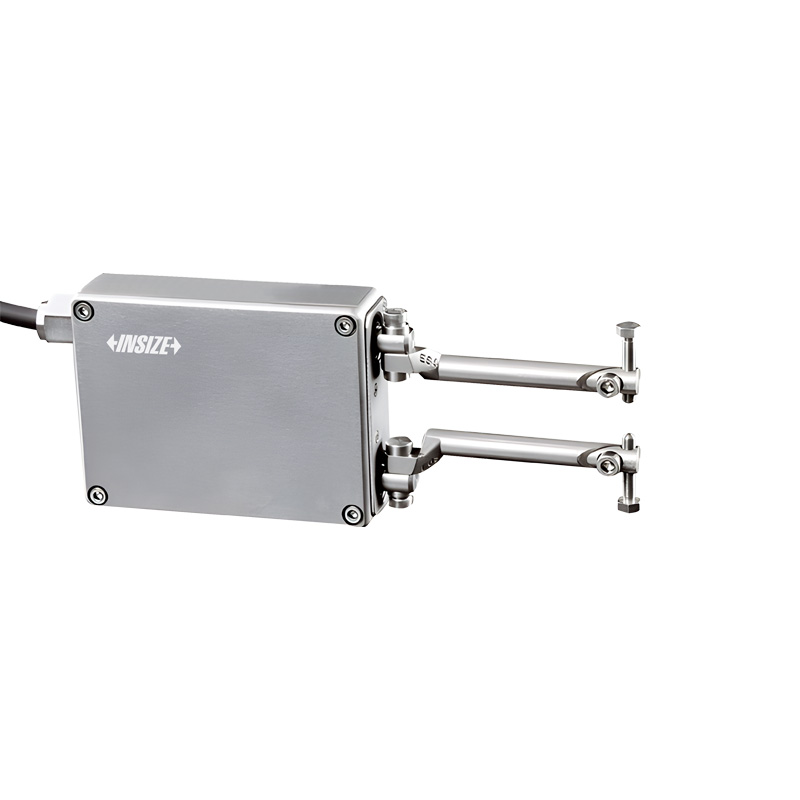

Measuring device: The internal structure contains no sliding mechanisms or friction components, ensuring high precision; L-shaped leaf spring pivot with high durability, good rigidity and reliable performance, Modular construction combined with high-precision parts for easy maintenance

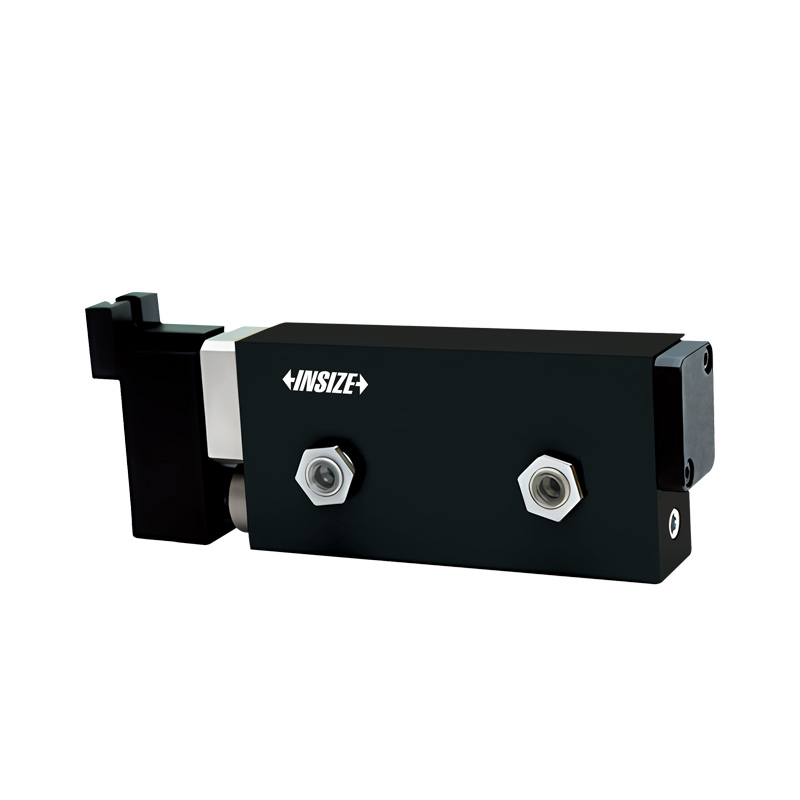

Driver cylinder: Used together with the OD measuring device, oil pressure is supplied by the machine tool hydraulic system
| Code | Range | Signal point output | Number of input signals |
|---|---|---|---|
| 9425-SET1 | ±1000µm | 7 relay signal points output | 5 input signals |
