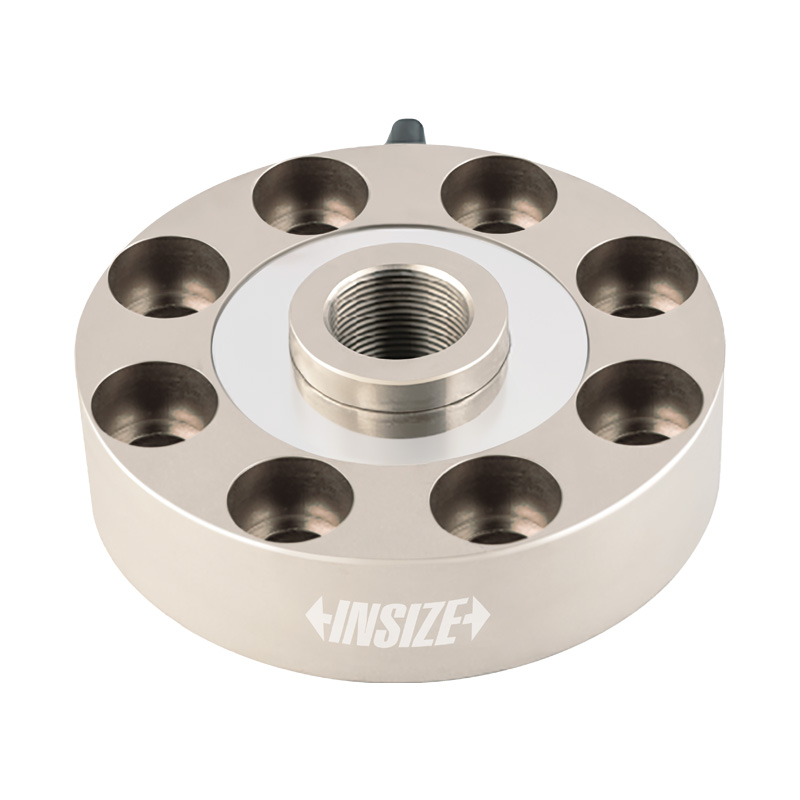

Spoke-Type Force Sensors (Advanced Type)
Code: 8656
Spoke-type structure
High precision and high stability
Easy and quick installation
Nickel-plated surface corrosion protection
Suitable for test machines and etc.
| Code | Type | Range |
|---|---|---|
| 8656-200 | sensor | 200kg/2000N |
| 8656-500 | sensor | 500kg/5000N |
| 8656-1T | sensor | 1T/10kN |
| 8656-1D5T | sensor | 1.5T/15kN |
| 8656-2D5T | sensor | 2.5T/25kN |
| 8656-5T | sensor | 5T/50kN |
| 8656-10T | sensor | 10T/100kN |
| 8656-20T | sensor | 20T/200kN |
| 8656-25T | sensor | 25T/250kN |
| 8656-30T | sensor | 30T/300kN |
| 8656-50T | sensor | 50T/500kN |
| 8656-100T | sensor | 100T/1000kN |

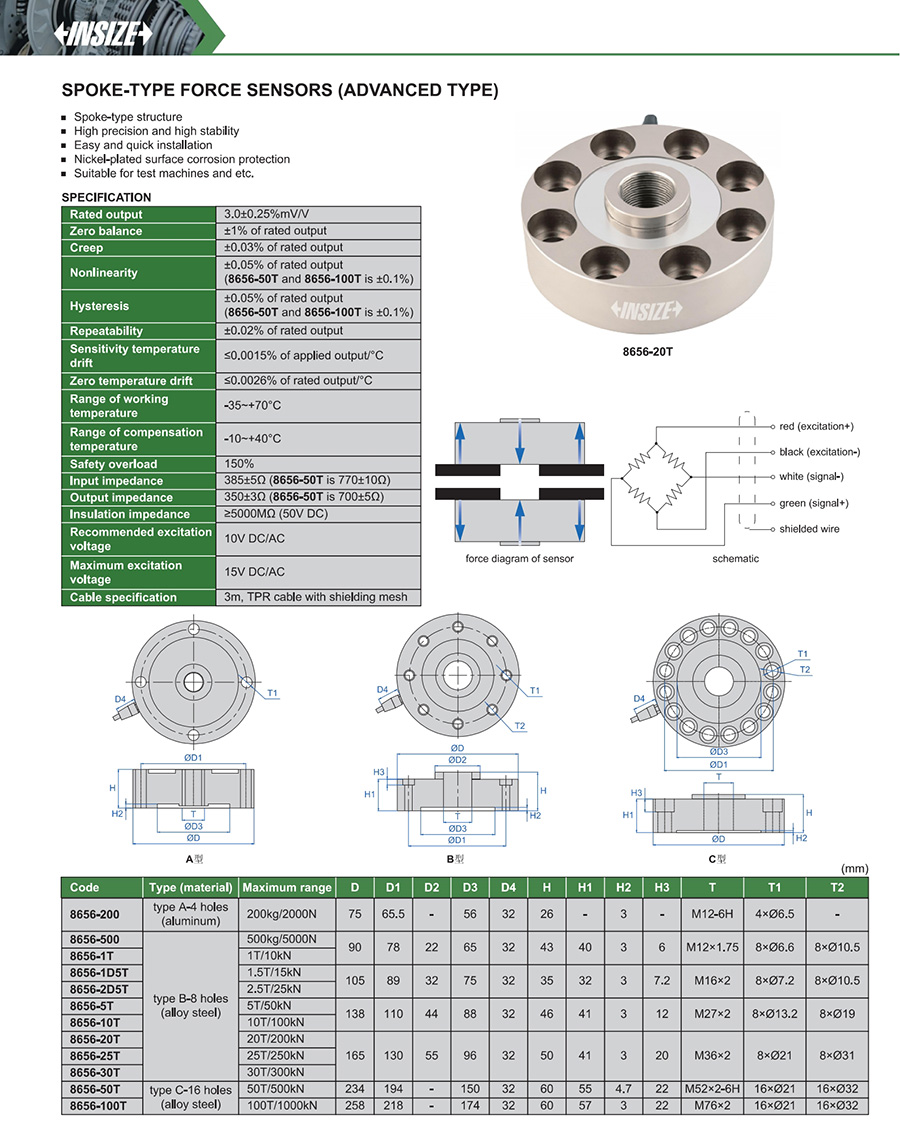

View the complete
product specifications
