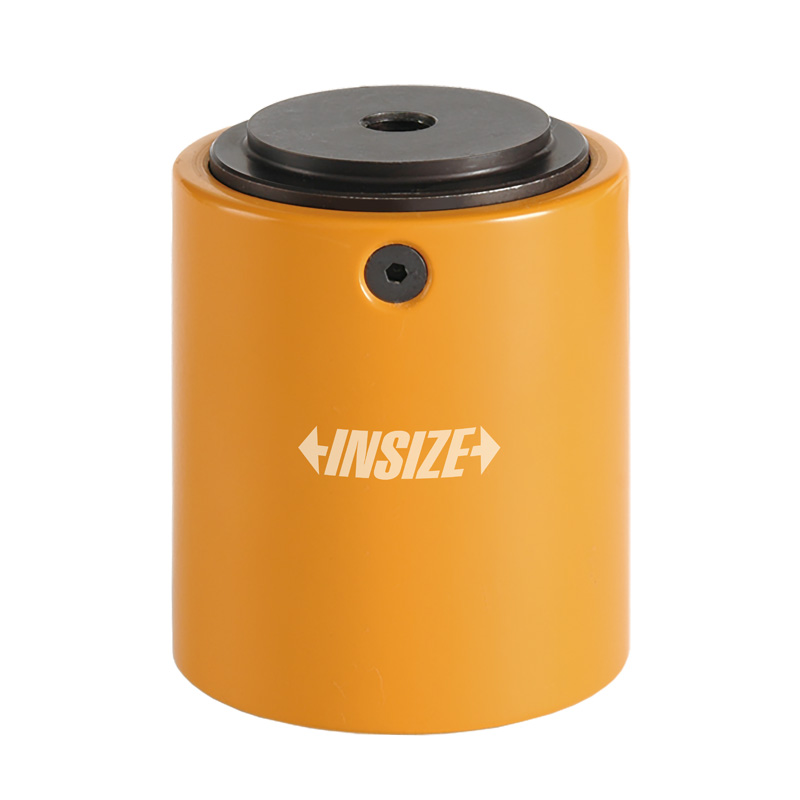

Column-Type Force Sensors (Advanced Type)
Code: 8655
Column-type structure
High precision and high stability
Easy and quick installation
Suitable for material testing equipments and etc.
| Code | Type | Range |
|---|---|---|
| 8655-5A | sensor | 5kg/50N |
| 8655-10A | sensor | 10kg/100N |
| 8655-20A | sensor | 20kg/200N |
| 8655-30A | sensor | 30kg/300N |
| 8655-50A | sensor | 50kg/500N |
| 8655-100A | sensor | 100kg/1000N |
| 8655-200A | sensor | 200kg/2000N |
| 8655-250A | sensor | 250kg/2500N |
| 8655-500A | sensor | 500kg/5000N |
| 8655-1T | sensor | 1T/10kN |
| 8655-2T | sensor | 2T/20kN |
| 8655-3T | sensor | 3T/30kN |
| 8655-5T | sensor | 5T/50kN |

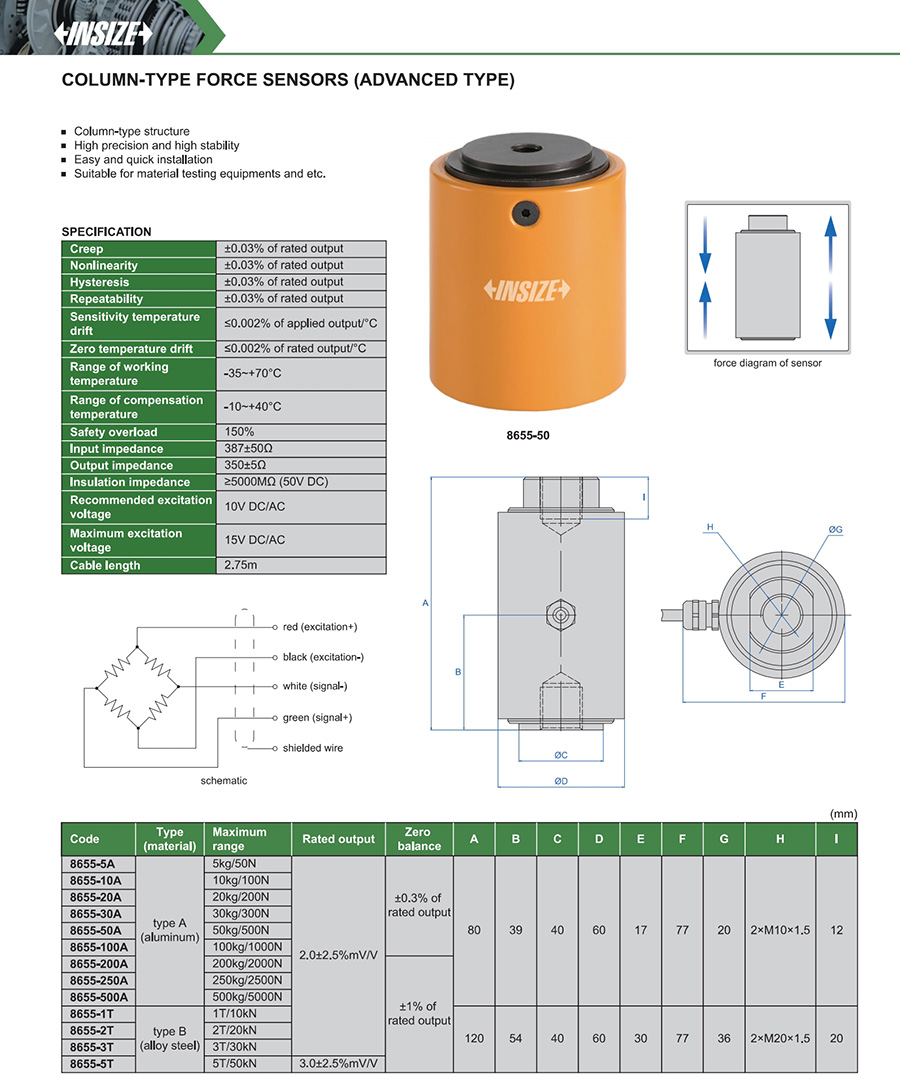

View the complete
product specifications
