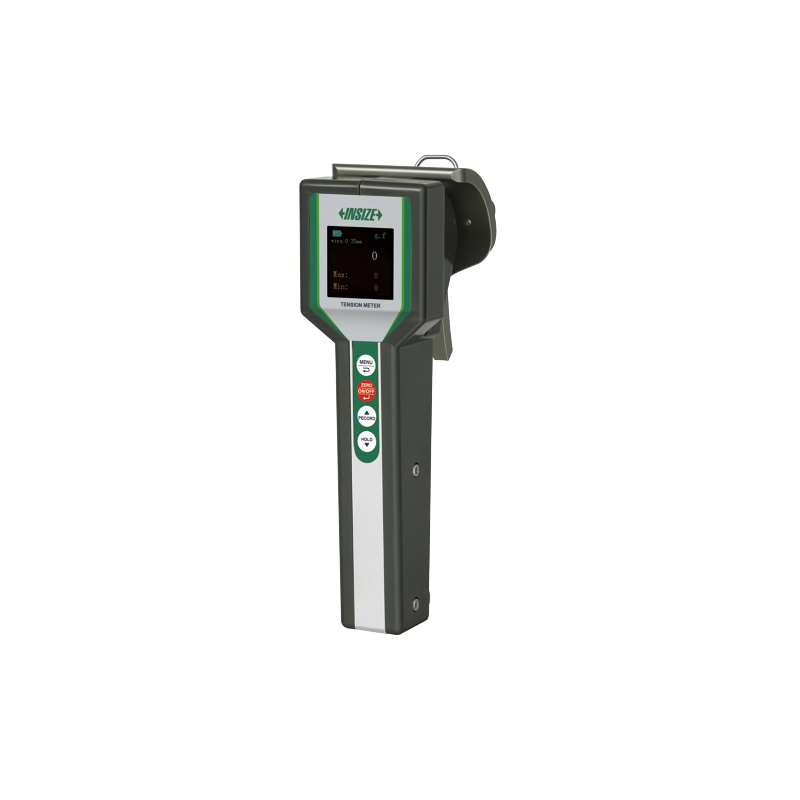

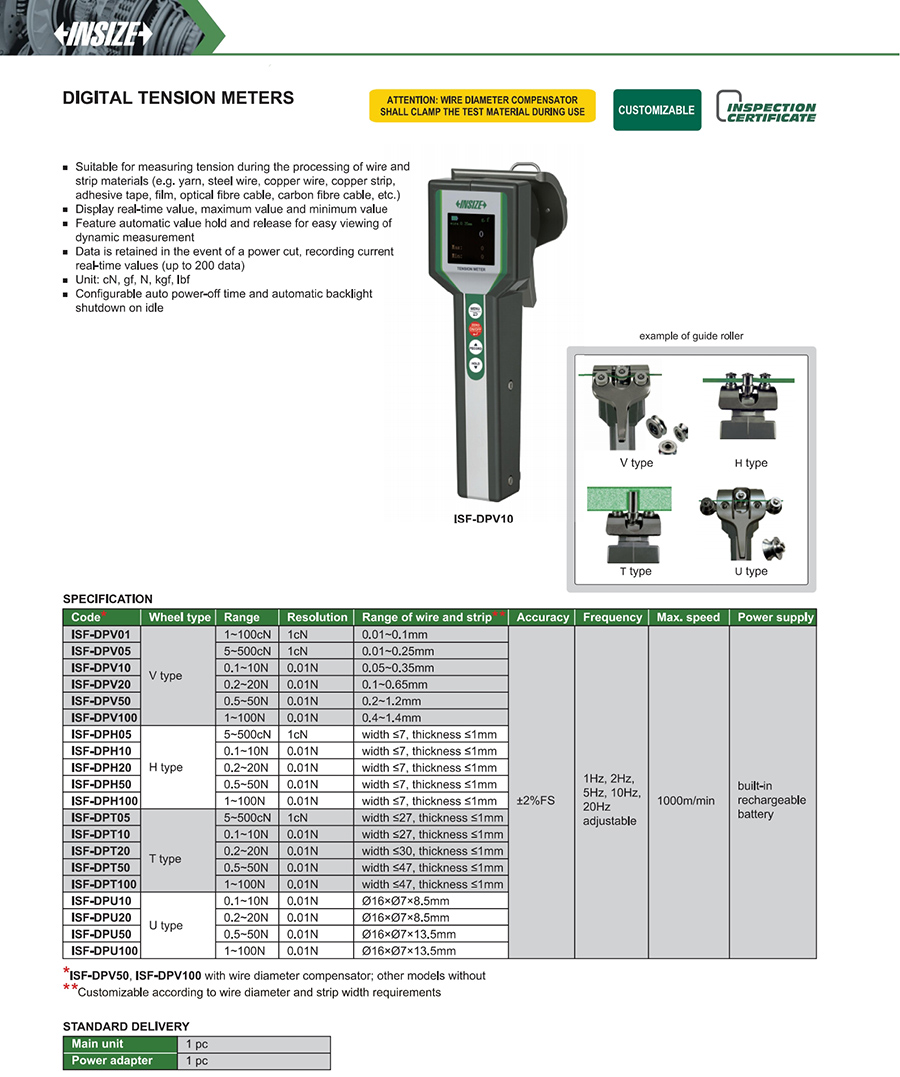

Digital Tension Meters
Code: ISF-DP Series
Suitable for measuring tension during the processing of wire and strip materials (e.g. yarn, steel wire, copper wire, copper strip, adhesive tape, film, optical fibre cable, carbon fibre cable, etc.)
Display real-time value, maximum value and minimum value
Feature automatic value hold and release for easy viewing of dynamic measurement
Data is retained in the event of a power cut, recording current real-time values (up to 200 data)
Unit: cN, gf, N, kgf, lbf
Configurable auto power-off time and automatic backlight shutdown on idle
| Code | Type | Range of test force | Accuracy class |
|---|---|---|---|
| ISF-DPV01 | V type | 1~100cN | ±2%FS |
| ISF-DPV05 | V type | 5~500cN | ±2%FS |
| ISF-DPV10 | V type | 0.1~10N | ±2%FS |
| ISF-DPV20 | V type | 0.2~20N | ±2%FS |
| ISF-DPV50 | V type | 0.5~50N | ±2%FS |
| ISF-DPV100 | V type | 1~100N | ±2%FS |
| ISF-DPH05 | H type | 5~500cN | ±2%FS |
| ISF-DPH10 | H type | 0.1~10N | ±2%FS |
| ISF-DPH20 | H type | 0.2~20N | ±2%FS |
| ISF-DPH50 | H type | 0.5~50N | ±2%FS |
| ISF-DPH100 | H type | 1~100N | ±2%FS |
| ISF-DPT05 | T type | 5~500cN | ±2%FS |
| ISF-DPT10 | T type | 0.1~10N | ±2%FS |
| ISF-DPT20 | T type | 0.2~20N | ±2%FS |
| ISF-DPT50 | T type | 0.5~50N | ±2%FS |
| ISF-DPT100 | T type | 1~100N | ±2%FS |
| ISF-DPU10 | U type | 0.1~10N | ±2%FS |
| ISF-DPU20 | U type | 0.2~20N | ±2%FS |
| ISF-DPU50 | U type | 0.5~50N | ±2%FS |
| ISF-DPU100 | U type | 1~100N | ±2%FS |
