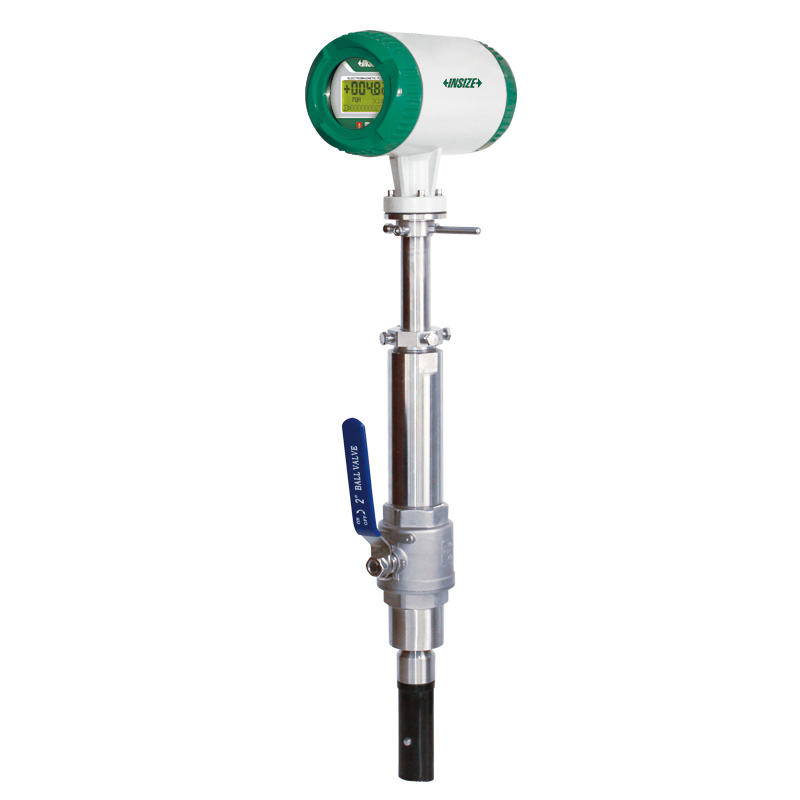

Insertion Electromagnetic Flowmeters
Code: 0902-□□□□□□□□□□
Suitable for fluid measurement in existing pipelines, and can be installed and removed under low pressure or pressurized conditions
Adopts dual-frequency excitation; immune to power frequency and on-site stray interference, ensuring stable and reliable performance
Simple structure, no moving parts, negligible pressure loss
Measurement accuracy is immune to changes in medium temperature, pressure, density, viscosity and conductivity
Measures and displays instantaneous flow rate, velocity and totalized flow
Flow accumulation function: forward total, reverse total, difference total
Upper and lower flow limit alarm function
Empty pipe alarm function
| Code | Accuracy | Connection | Nominal diameter |
|---|---|---|---|
| 0902-□□□□□□□□□□ | ±1.5% | 2''thread, 2''flange (optional) | DN100~DN3000 |

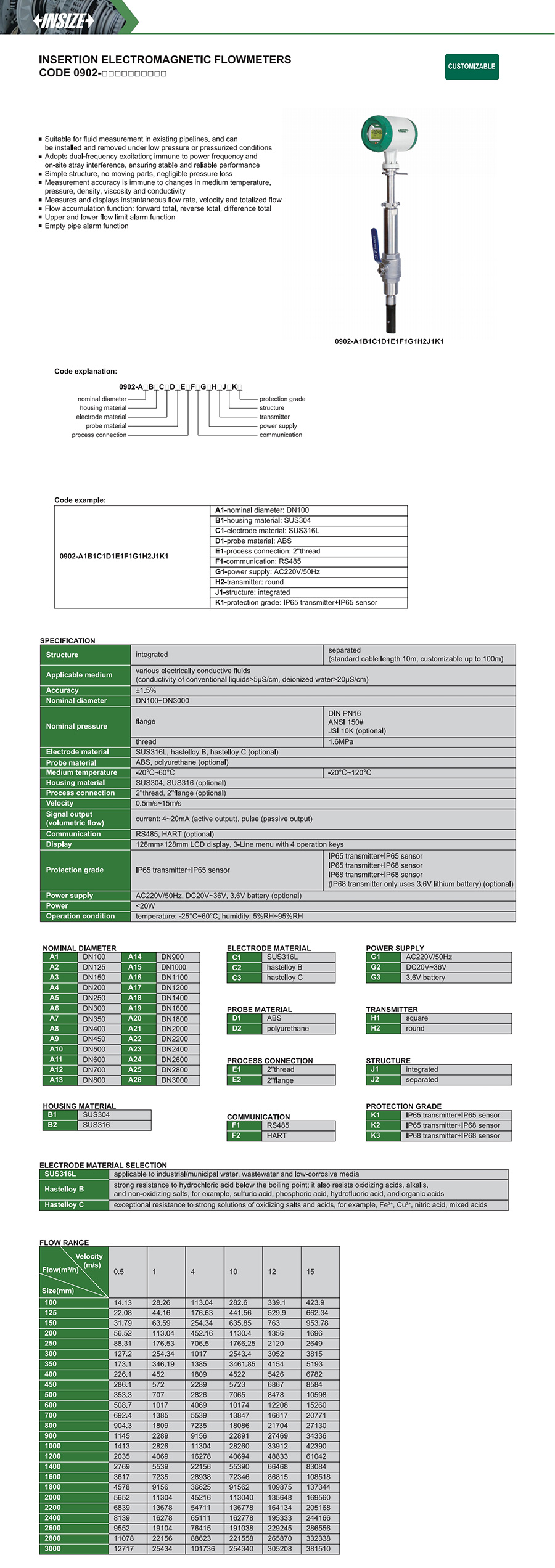

View the complete
product specifications
